Brand: SUNIX

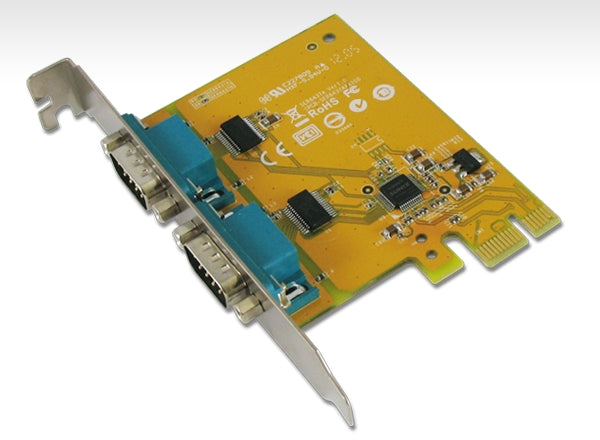

SUNIX PCIE 2 Port Serial Card Full Height Expansion RS-232 - It is compatible with PCI Express x1, x2, x4, x8 and x16 lane

SKU: V177-L-IDSUN-SER6437A
Price
Save $45
/
  • 12 Months Warranty
  • Ships Next Business Day From Melbourne
  • 30 Days Returns*
  • Carbon neutral
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon
GST included. Shipping calculated at checkout.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Product Description

Sunix PCIE 2 Port Serial Card Full Height Expansion RS-232 - It is compatible with PCI Express x1, x2, x4, x8 and x16 lane General InterfaceRS-232 ControllerSUNIX SUN2212 PuLao (16C950 UART Compatible) BUSPCI Express Spec 2.0, Single-Lane (x1) IRQ & IOAssigned by System Serial Communication InterfaceRS-232 No. of Port2-port FIFO128byte Hardware SignalDCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI Baud rate50bps ~ 115.2Kbps Stop bit1, 1.5, 2 Parityeven, odd, none, mark, space Flow ControlNone, Xon/Xoff, RTS/CTS Protection±15KV ESD protection for each signal Human Body Model (HBM) ±15KV IEC1000-4-2 Air Gap Discharge ±8KV IEC1000-4-2 Contact Discharge PCB ConnectorDB9 Male Driver Support Windows ClientXP / Vista / 7 / 8.x / 10 (X86/X64) Windows Server2003 / 2008 / 2012 / 2016 (X64) Windows EmbeddedXP Embedded / POSReady 2009 / POSReady / Embedded System 2009 LinuxLinux 2.x / 3.x / 4.x / 5.3 DOSDOS *UNIXFreeBSD / QNX / SCO OpenServer / SCO UnixWare / Solaris *IBM OS/2WARP 3/WARP 4 '*' marked as a project supported operating system. Please contact us if you have any further need. Regulatory Approvals HardwareCE, FCC, VCCI, BSMI SoftwareMicrosoft WHQL Windows Microsoft Client: XP / Vista / 7 / 8.x / 10 (X86/X64) Microsoft Server: 2003 / 2008 / 2012 / 2016 (X64) Environment Operation Temperature0 to 60°C (32 to 140°F) Operation Humidity5 to 95% RH Storage Temperature-20 to 85°C (-4 to 185°F) Dimension PCB Dimension65 x 88 mm BracketStandard 121 mm Bracket Space1

Your order will be shipped from Next Business Day and can be tracked online for your peace of mind. For further details, please take a look at ourShipping guide.

We guarantee a 12-month Aussie warranty on all items sold through our website, unless otherwise stated. Warranty covers products that are found to be faulty or damaged, except if stated otherwise on the product listing or sold as an accessory or bonus gift. More information is available here.
