OVERVIEW

Due to its small form factor the Focus+ Gold 650 watt power supply is a great solution for those, who want to build smaller systems and care about the airy arrangement inside their computer case. The fully modular flat black cables are easy to install, save space inside the computer case and provide ample customization and upgrading possibilities at the same time. This mid power range power supply is not only small, but mean too. It boasts the highest power density in its class and it also has remarkable stability and output characteristics during operation.

SPECIFICATIONS

• 80PLUS: Gold
• Form Factor: Intel ATX 12 V
• Dimensions: 150 mm (W) x 140 mm (L) x 86 mm (H)
• Fan Information
• Fan Size: 120 mm
• Fan Control: Hybrid Silent fan Control
• Fan Bearing: Fluid Dynamic Bearing
• Life Expectancy: 70,000 hours at 40 C, 15 % - 65 % RH
• Cable Information
• Modularity: Fully Modular
• Cable type: Flat black cables
• Electrical Features
• Operating Temperature: 0 - 50 C
• MTBF @ 25 C, excl. fan: 100,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and Environmental
• Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Package Content

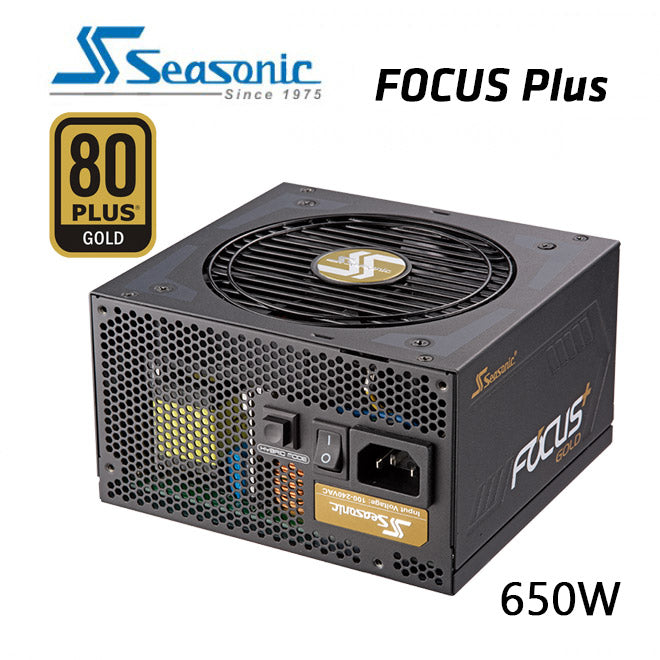

• 1 xSEASONIC SSR-650FX FOCUS PLUS 650W 80 + GOLD Power Supply
