Product Description

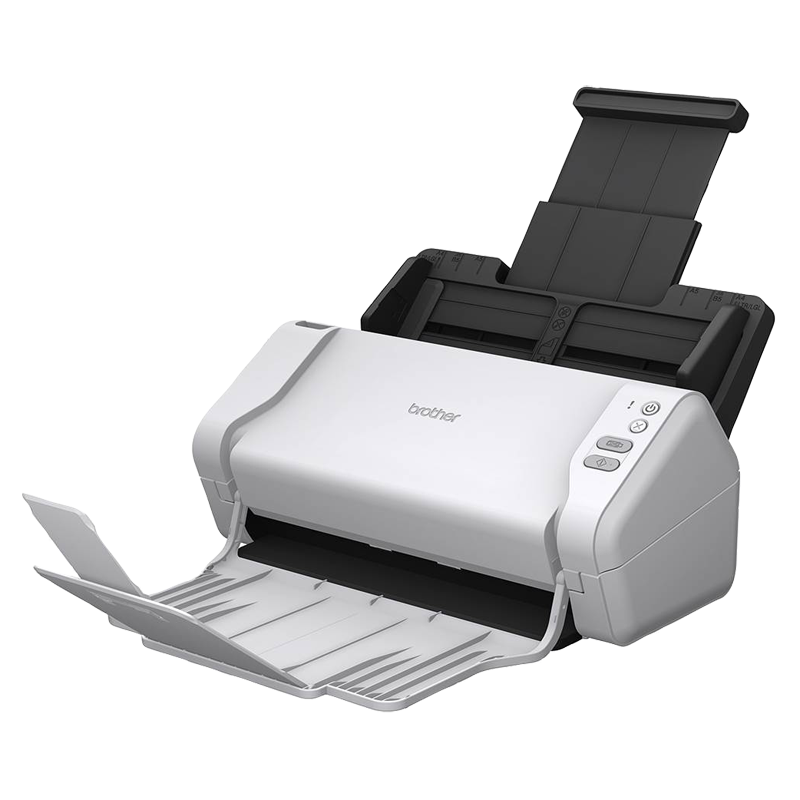

Powerful New Desktop Document Scanner
An affordable, easy to use desktop scanner and is the ideal solution for a variety of business scanning needs for SMBs and SOHOs. The new ADS-2200 offers a 50-sheet Automatic Document Feeder (ADF) to handle a business most diverse and high-volume scan jobs whilst still being compact enough for small workspaces, front of house counters and office desktops where space is often limited. Whether its a double-sided contract, small receipt, an embossed ID card of up to 1.32mm thickness, or a 5000mm long paper, Brothers ADS-2200 has the capability to be loaded with mixed sizes and weights, proving to be a compact yet powerful machine.
GENERAL SPECIFICATION
Memory Capacity |
Standard |
512 MB |
Power Source |
AC: 220 - 240 V, 50/60 Hz |
|
Touchscreen LCD (Liquid Crystal Display)*1 (ADS-2700W) |
Touchscreen 71.1 mm TFT Colour LCD |
|
Approx. Power Consumption*2
|
Scanning*3
|
ADS-2200:21 W ADS-2700W:23 W |
Ready*4
|
ADS-2200:4.7 W ADS-2700W:6.6 W |
|
Sleep |
ADS-2200:0.8 W ADS-2700W:1.0 W |
|
Power Down |
ADS-2200:0.1 W ADS-2700W:0.1 W |
|
Dimensions |
||
Approx. Weights |
ADS-2200:2.5 kg ADS-2700W:2.7 kg |
|
Temperature |
Operating |
5 C to 35 C |
Storage |
0 C to 40 C |
|
Humidity |
Operating |
20% to 80% |
Storage |
10% to 90% |
|
ADF (automatic document feeder) |
Up to 50 pages (Paper: 80 g/㎡ Legal size, or less than 5 mm) |
*1Measured diagonally
*2Measured when the machine is connected to your computer.
*3When using 2-sided (duplex) scanning.
*4When the USB port is connected.
Document Specifications
Paper Type |
Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card |
|
Document Size |
Width |
51 to 215.9 mm |
Length |
51 mm to 355.6 mm |
Scanner Specifications
Colour/Monochrome |
Yes/Yes |
|
TWAIN Compliant |
Windows |
WindowsXP Home (SP3) / WindowsXP Professional (only 32bit SP3) / Windows7 (SP1) / Windows8 / Windows8.1 / Windows10 Windows Server2008 R2 / Windows Server2012 / Windows Server2012 R2 / Windows Server2016 |
Mac |
macOS v10.10.5 / 10.11.x /10.12.x*1 |
|
WIA Compliant |
Windows |
Windows7 (SP1) / Windows8 / Windows8.1 / Windows10 |
ICA Compliant |
Mac |
macOS v10.10.x / 10.11.x /10.12.x*1 |
Colour Depth |
Input |
48 bit color processing |
Output |
24 bit colour Processing |
|
Resolution |
Interpolated |
Up to 1200 x 1200 dpi |
Optical |
Up to 600 x 600 dpi |
|
Scanning Width |
Up to 215.9 mm |
|
Greyscale |
256 levels |
|
Max. Speed |
For detailed specifications visit |
*1For the latest driver updates for the version of OS X you are using, visit
Direct Scan Feature (Scan to USB) Specifications
Compatible Media |
USB flash drive 1*1 |
Interface |
Interface USB 2.0 Hi Speed |
*1USB Mass Storage standard up to 64 GB
Supported formats: FAT12/FAT16/FAT32/exFAT
Interface Specifications
USB |
Hi-Speed USB 2.0*1 Use a USB 2.0 interface cable (Type A/B) that is no more than2.0 metreslong. |
LAN (ADS-2700W) |
Use an Ethernet UTP cable category 5 or later. |
Wireless LAN (ADS-2700W) |
IEEE 802.11b/g/n (Infrastructure Mode) IEEE 802.11g (Wi-Fi Direct) |
*1
Your machine has a Hi-Speed USB 2.0 interface. The machine can also be connected to a computer that has a USB 1.0/1.1 interface.
Third-party USB ports are not supported.
